Product 16
Overview & Key Features

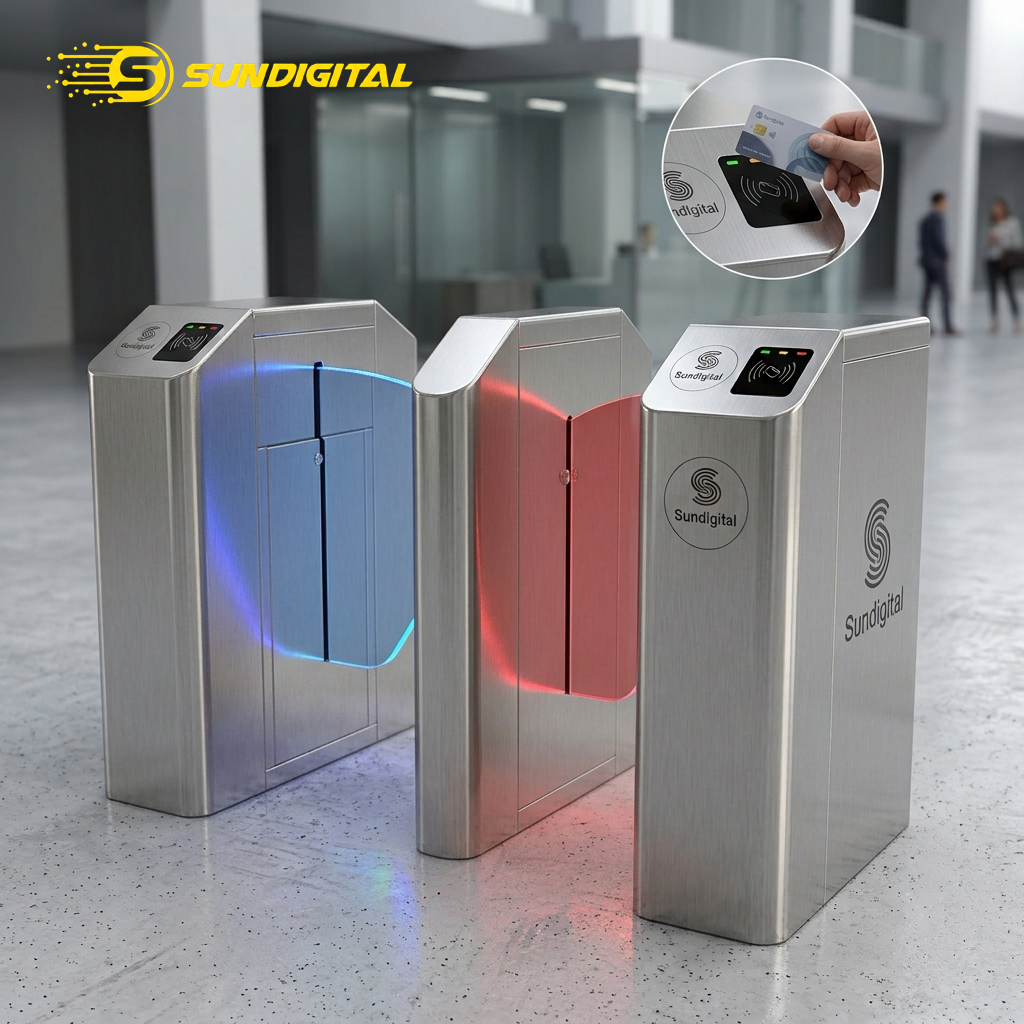

Advanced dual-lane flap barrier system built with a shared central cabinet to efficiently handle high-volume passenger traffic flow.
- High-Capacity Flow: Dual-lane configuration sharing a central cabinet to manage high-volume passenger traffic efficiently.
- Rapid Transit: High-speed opening and closing mechanism ranging from 0.2 to 0.6 seconds.
- Comprehensive Safety Sensors: Multiple pairs of photoelectric sensors for anti-tailgating, anti-clamping, and direction judgment.
- Wide Application: Ideal for high-security indoor environments like metro stations, corporate offices, and airports.
| Parameter | Specification |
|---|---|
| Lane Configuration | Dual lane (Two adjacent passage ways) |
| Passage Speed | 40 to 50 persons per minute per lane |
| Flap Material | Durable Transparent Tempered Glass |
| Drive Mechanism | High-speed Brushless DC Motor |
| Control Interface | Standard Dry Contact Relay / RS485 / TCP/IP |
| Power Supply | AC 220V/110V, 50/60Hz |
| Opening/Closing Time | 0.2 to 0.6 seconds |
| MCBF | 10,000,000 cycles |
| Dimensions | Approx. 1400 x 1200 x 980 mm |
Specifications are indicative and vary by model and configuration. Exact technical data sheets are issued with every quotation.
